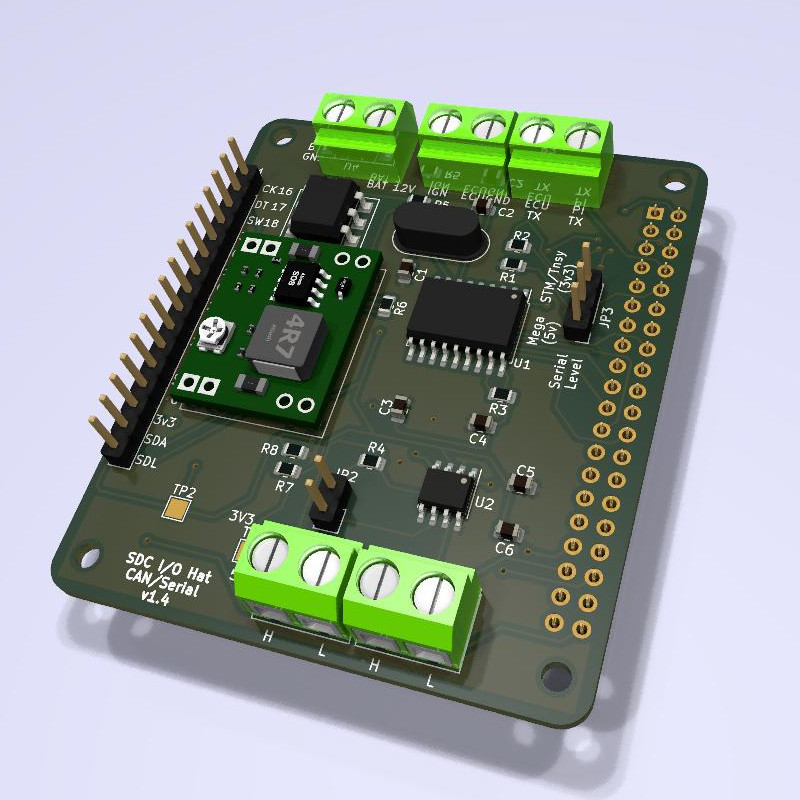

SDC I/O Hat (Serial & CAN)
search
  • SDC I/O Hat (Serial & CAN)

SDC I/O Hat (Serial & CAN)

£46.00
No tax

This I/O hat incorporates the following features:

* Data input via Serial or CANBus
* Switchable serial voltage level for support for 5v and 3v3 devices (Arudino and STM32/Teensy).
* Power supply capable of powering your Pi from vehicle power sources (7-28v input, 5v output).
* Ignition input, used for controlled shutdown of the Pi, in conjunction with a delayed power shutoff module (purchased separately).
* CANbus module, allowing you to connect multiple SDC devices onto a CANbus or receive data via CANBus (provided software support is present for the data you want to read). Or receive data from a Speeduino over CANBus.
* Two connectors for Can High and Can Low, allowing you to chain this module in the middle of a CANBus
* CANBus optional termination resistor which can be enabled with a jumper if needed.
* Screw connectors for inputs
* Input circuit for Speeduino serial connection (TX, RX, Ground)
* GPIO breakout for a selection of available GPIO pins. Includes a row of pins suitable for connecting a rotary encoder to allow page, composite, or icon selection (depending upon software configuration). Also includes I2C port access to connect an RTC.
* TinySDC Header
* On the underside is a 40pin connector which enables the hat to be connected straight to a Raspberry Pi pin header.

Note: If you want CANBus support your SDC licence needs to have it enabled. For kits which include the appropriate licence either see other listings or add the SDC licence to your cart separately.

Quantity
Out-of-Stock

Suitable for any Pi with a 40pin header (excluding the Pi4 range as this is not supported by SDC). Be aware of your performance needs when choosing which Pi to use, as the lower spec models are obviously less performant and the frame rate may suffer for complex screen designs.
