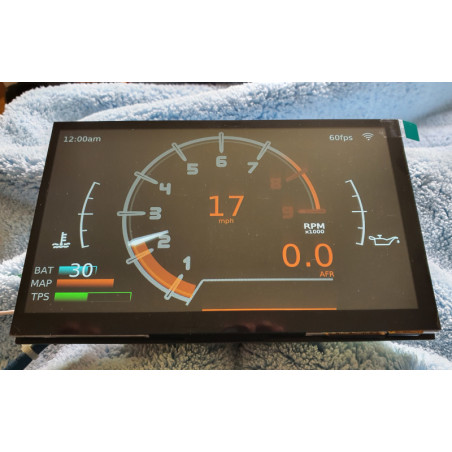

SDC Touchscreen/CPU/Software Kit (7")
£200.00
No tax
A pre-assembled SDC implementation containing the following items:
* 7" HDMI capacitive touch monitor. 1024x600 resolution
* Raspberry Pi 3A+ attached to the rear of the screen.
* Integrated controlled shutdown module
* 255 Page SDC License (i.e. all pages) with 'extras' enabled for future expansion.
* 32Gb Samsung SD Card with licensed SDC installed
* SDC I/O Hat with power supply, Serial interface input, and ignition input.
This product is pre-assembled and ready to be wired in to your Speeduino ECU.
The screen in this kit has brightness control but it uses a hardware control on the side of the screen, which is unlikely to be accessible once you've installed it in your dashboard. Brightness cannot be controlled via software but the setting is remembered by the screen between boots, so you only have to set it once.
The single USB port on this device is used by the touchscreen.
For getting started instructions, see the attachments tab below.
The SDC installation on the device will be functional and configured in Demo (playback) mode. You will need to configure it for your WIFI network, switch it to serial mode, and design screens for whatever purpose you need. See the SDC Help Pages for information on how to do this.
Connections
You need to provide the following connections to the device:
* Speeduino Ground
* Speeduino Serial3 transmit (from the mega)
* Speeduino Serial3 receive (from the mega)
* Switched 12v supply (from the ignition key)
* Permananent 12v supply (direct from battery, fused).
* Permanent battery Ground
For full details see the product page at https://sdc.v8creations.com
